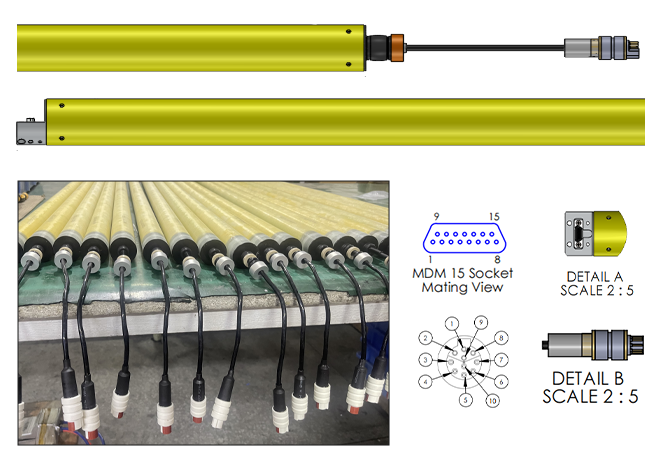

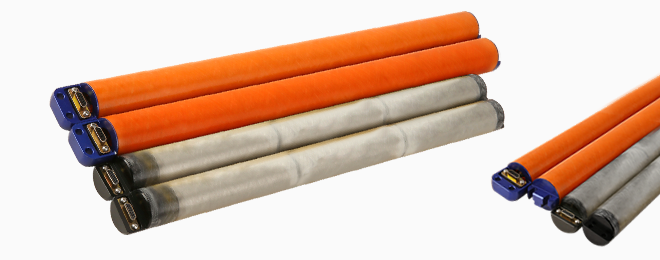

MWD - QDT150℃/165℃ Battery Pack
3.6V Li/SOCL2 System Battery
Size DD, Winding Structure Battery
Nominal Capacity: 28Ah
Open Circuit Voltage : 3.67V
Nominal Voltage: 3.60V
Operating Temperature Range: -40℃ ~ +165℃
Battery pack parameters:
◆ 29.2V 28Ah 150℃
◆ 29.2V 28Ah 165℃
◆ 36V 28Ah 150℃
◆ 36V 28Ah 165℃
Other Battery Pack Types
High-Temp Gamma LTC Battery Packs
Item: Gamma battery pack
Rated voltage: 36.5V
Nominal capacity: 14.0Ah
Maximum pulse current: 1000 mA
Maximum external dimension: Ф 38.0mm × 900.0mm
Working temperature: – 40 ℃~150 ℃/180 ℃
High-Temperature Li-SOCl₂ FE-3 Battery Packs
Item: FE-3 battery pack
Rated voltage: 11.0V
Nominal capacity: 9.0Ah
Maximum pulse current: 500mA
Maximum external dimension: Ф 26.5mm × 362.0mm
Working temperature: – 40 ℃~150 ℃/180 ℃
High-Temper Li-SOCl₂ APS Battery Pack
Item: APS-MWD Battery Pack
Rated voltage: 36.5V
Nominal capacity: 29.0Ah
Maximum pulse current: 1500 mA
Maximum external dimension: Ф 37.0mm × 1455.0mm
Working temperature: – 40 ℃~150 ℃/180 ℃
Battery Packs for Electromagnetic Wave Instruments
Item: EMW Battery Packs
Rated voltage: 14.6V
Nominal capacity: 29.0Ah
Maximum pulse current: 1500mA
Maximum external dimension: Ф 37.0mm × 1805.0mm
Working temperature: – 40 ℃~150 C/180 ℃
JMWD-10S Battery Pack of Hi-Temperature Li-SOCl₂
Item: JMWD-10 battery pack
Rated voltage: 36.5V
Nominal capacity: 29.0Ah
Maximum pulse current: 1500mA
Maximum external dimension: Ф 37.5mm × 1570mm
Working temperature: – 40 ℃~150 ℃/180 ℃
UTE Hi-Temperature Battery Pack
Item: UTE battery pack
Rated voltage: 29.0V
Nominal capacity: 29.0Ah
Maximum pulse current: 1500 mA
Maximum external dimension: Ф 37.5mm × 1190.0mm
Working temperature: – 40 ℃~150 “℃/180 ℃
GE-MWD-QDT Hi-Temp. Battery
Item: GE-MWD-QDT Battery pack
Rated voltage: 29.0V
Nominal capacity: 29.0Ah
Maximum pulse current: 1500mA maximum
Size: Ф 37.5mm × 1150.0mm
Working temperature: – 40 ℃~150 ℃/180 ℃
JMWD-8S of Hi-Temp. ER Battery Pack
Item:JMWD-8 battery pack
Rated voltage: 29.0V
Nominal capacity: 29.0Ah
Maximum pulse current: 1500mA maximum
Size: Ф 37.5mm × 1185.0mm
Working temperature: – 40 ℃~150 ℃/180 ℃
GE High Temperature Battery
Item:GE battery pack
Rated voltage: 29.0V
Nominal capacity: 29.0Ah
Maximum pulse current: 1500mA
Maximum external dimension:Ф 37.0mm × 1150mm
Working temperature: – 40 ℃~150 ℃/180 ℃
T40 Hi-Temp Battery Packs
Item:T40 Battery pack
Rated voltage: 29.0V
Nominal capacity: 14.0Ah
Maximum pulse current: 1000mA
Maximum external dimension: Ф 30.0mm × 1010.0mm
Working temperature: – 40 ℃~150 ℃/180 ℃
Near-drill Hi-Temper LTC Battery Pack
Item:Near-drill battery pack
Rated voltage: 21.0V
Nominal capacity: 14.0Ah
Maximum pulse current: 1000mA
Maximum external dimension: Ф 38.0mm × 495.0mm
Working temperature: – 40 ℃~150 ℃/180 ℃
Hi-Temp Li-SOCl₂ FE Battery Pack
Item:FE battery pack
Rated voltage: 21.9 V
Nominal capacity: 9.0Ah
Maximum pulse current: 200 mA
Maximum external dimension: Ф 50.5mm × 190.2mm
Operating temperature- 40℃～150℃/180℃
High-temperature li-SOCl2 battery packs:
| TYPE | Voltage (V) | Capacity (Ah) | Out Diameter/Length (mm) | Max. Pules Current (mA) | Working Temperature(℃) |
|---|---|---|---|---|---|
|
36.5 |
14 |
38×900 |
1000 |
-40~150/180 |
|
|
29.0 |
29.0
|
37.5 ×1185 |
1500 |
-40~150/180 |
|
|
28.8-29.2 |
27.0 |
37.5 |
1200 |
-40~150/180 |
|
|
29.0 |
29.0 |
37.5×1150 |
1500 |
-40~150/180 |
|
|
28.8-29.2 |
29.0 |
37.5×1150 |
1500 |
-40~150/180 |
|
|
36.5 |
29.0 |
37.0×1455.0 |
1500 |
-40~150/180 |
|
|
21.9 |
9.0 |
50.5 × 190.2 |
300 |
-40~150/180 |
|
|
29.0 |
29.5 |
37.5×1190.0 |
1500 |
-40~150/180 |
|
|
14.6 |
29.0 |
37×1805.0 |
1500 |
-40~150/180 |
|
|
21.0 |
14.0 |
38.0×495 |
1000 |
-40~150/180 |
|
|
29.0 |
14.0 |
30×1010 |
10000 |
-40~150/180 |
|
|
11.0 |
9.0 |
26.5×362 |
500 |
-40~150/180 |
