About MWD (Wireless Measuring While Drilling)
What is MWD (Wireless Measuring While Drilling)?
MWD means “Measure While Drilling”, which originally meant measuring the main parameters of borehole trajectory while drilling, including: inclination angle, azimuth angle, tool face angle and auxiliary parameters such as temperature.
Measurement While Drilling (or MWD) is a type of logging that incorporates measurement tools into the drillstring and provides real-time information to help guide the drilling rig.
The real-time Measurements While Drilling (MWD) screen shows pressure pulses sent by downhole tools, data transmissions being decoded, and displays of drilling depth information and displays of various parameters.
The main components that do these jobs are power supplies, controllers, sensors and transmitters.
What is the composition of MWD (Wireless Measuring While Drilling)?

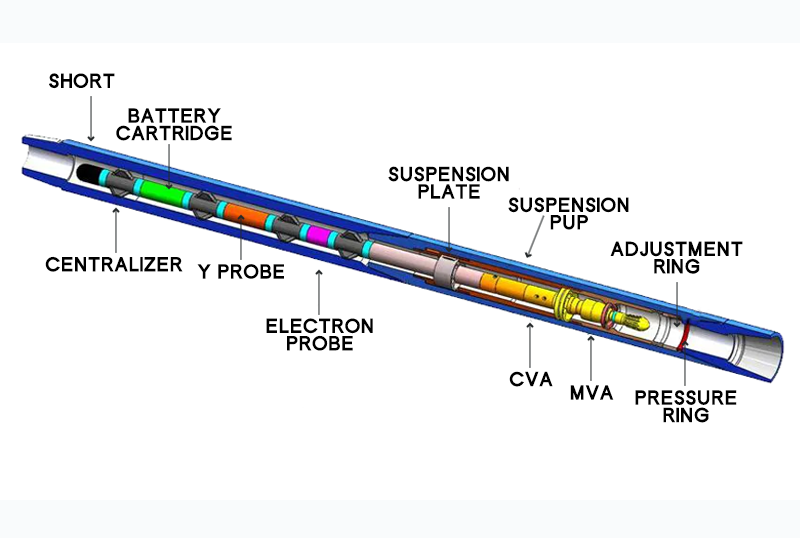

MWD is a measurement instrument for real-time monitoring of directional wells and horizontal wells and guiding the completion of wellbore trajectory control. It is mainly composed of two parts:
Downhole Instruments
Ground instrument
Measurement While Drilling (MWD) tools are used to measure anything sensed by the tool’s sensors, such as temperature, dip, azimuth, and tool vibration while drilling, and transmit all this data to the surface.
The main components that do these jobs are power supplies, controllers, sensors and transmitters.
Expand knowledge
About Downhole Instruments?
Downhole instruments mainly include:pulse generator, driver, battery, and directional probe……
About Ground Instruments?
Ground instruments mainly include:pressure sensor, ground interface box, display power supply, drill floor display, and orientation software…..
Why does CONTAINER TRACKING need disposable high-temperature battery? Do not use rechargeable batteries?
The disposable battery capacity is larger than the rechargeable capacity.
Disposable batteries cost less than rechargeable batteries.
Expand knowledge
About high temperature batteries?
High-temperature batteries have high performance, high reliability, and can be used in extreme environments such as high temperature (up to +200°C) or low temperature (minimum -55°C), large vibrations, and shocks.
About rechargeable batteries?
Rechargeable batteries have a lower voltage than disposable batteries of the same size, 1.2 volts for AA batteries and 8.4 volts for 9V rechargeable batteries.
About the composition of MWD or LWD battery modules?

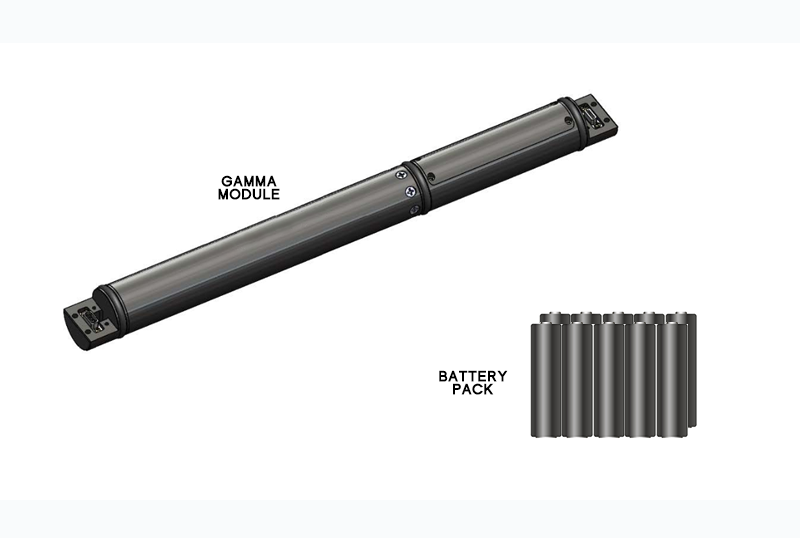

Gamma Module Gamma module
The same battery module powers the
The battery pack is usually 8 or 10 cells
Expand knowledge
About the performance index of the lithium battery of the MWD battery pack of the mud pulse inclinometer while drilling?
The performance index of the lithium battery of the MWD battery pack of the mud pulse inclinometer while drilling is:1. Open circuit voltage: 28.8V;…..
List of battery model and size
| SIZE TYPE NAME(China) | SIZE TYPE NAME(National) | DESCRIPTION | DETAILS |
|---|---|---|---|
|
CC |
CC |
There are many types and no fixed size. |
Is cc battery a solar energy storage system, power system or home appliance. |
|
No.1 Battery |
LR20 / AM1 |
Diameter: ф 34.2
Height: 61.5mm |
Wide range of uses, civilian, military, and special DC power supplies can find D-type batteries, standard D (flat head) batteries. |
|
DD Primary Battery |
DD |
4.9 inches typical length |
Primarily used by military and other tactical users, it is built to last. With a wide operating temperature range and a typical length of 4.9 inches, these batteries will fit a wide variety of electronic devices including: flashlights, large communication devices, invisible fencing, RFID tracking, location beacons, and more. |
|
No.8 Battery |
1/2AA（LR1/AM5) |
Diameter: ф11.0
Height: 30.0mm |
—— —— —— —— |
|
No.2 Battery |
C（LR14/AM2) |
Diameter: ф 26.2
Height: 50mm |
Old-fashioned quartz wall clocks, metal movements, pointer multimeters, small flashlights, small radios, etc. Now out of the market. |
|
No.5 Battery |
AA (/LR6/AM3) |
Diameter: ф14.5
Height: 50.5mm |
Now the battery is the most used daily, and it can be seen in various electrical appliances, toys, and equipment. |
|
No.7 Battery |
AAA (/LR03/AM4) |
Diameter: ф10.5
Height: 44.5mm |
Now the most used battery in daily life, it can be seen in various low-power scenarios, such as remote controls, electronic watches, thermometers and so on. |
