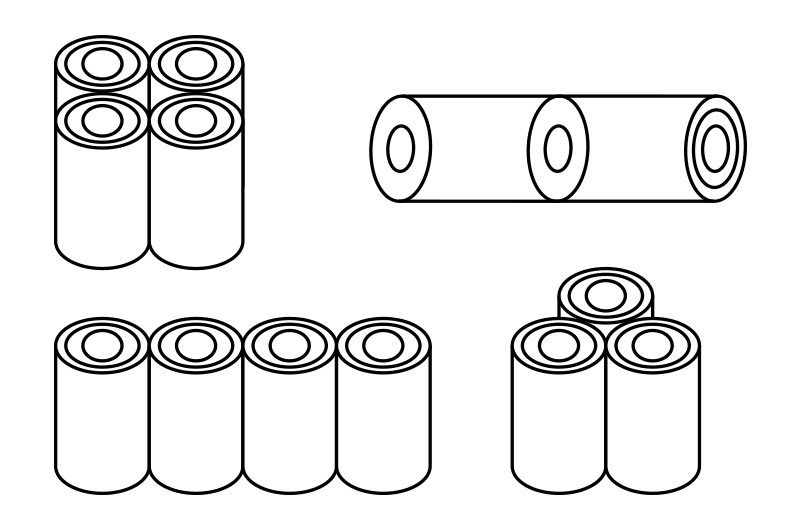

ACCORDING TO SPACE SIZE:
DESIGN THE PLACEMENT METHOD ACCORDING TO

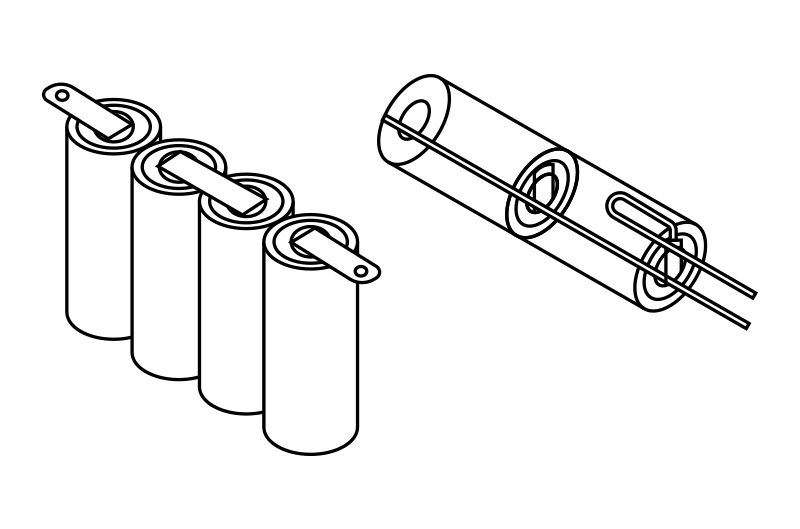

CUSTOMIZED:
DESIGN THE APPROPRIATE LINK MODE
| BRAND | BATTERYMODEL | MAXIMUM TEMPERATURE | OCV | CAPACITY | DIMENSION | DIMENSION | STORAGE (MAX.) |
|---|---|---|---|---|---|---|---|
|
EXCELL
BATTERY |
2EXL10518CR4 |
150 ℃ |
36V |
28AH |
1.46" × 57.4" |
37.084 x 1457.96 MM |
------ |
|
GMB |
34 SERIES |
150 ℃ |
36V |
27~29AH |
SUPPORT |
SUPPORT |
+30 ℃ |
|
26 SERIES |
|||||||
|
18 SERIES |
|||||||
|
14 SERIES |
ADVATAGES:
FEATURES:
▍Stable high operating voltage and high capacitance
▍High energy density,high stable current
▍Wide operating temperature rages(-30℃~+150℃)
▍Low self-discharge rate
(annual self-discharge rate is less than 3%at +25c)
▍Excellent environmental application characteristics
▍Stainless steel case (low magnetic resistance to environmental erosion)
▍High temperature adhesive printing
▍A positive structure with proprietary technology
▍Stainless steel-glass airtight package
▍Non-combustible electrolyte
▍High short circuit safety
▍Comply with GB 8897.4-2008 technical requirements
▍Meet technical requirements of IEC60086.4:2014
WARNING: DO NOT CHARGE, SHORT CIRCUIT, HEAT MORE THAN 150℃, DECOMPOSE, PUT INTO WATER, DIRECTLY IN THE BATTERY SHELL SURFACE WELDING, OTHERWISE MAY CAUSE EXPLOSION,
COMBUSTION AND INTERNAL ACID LEAKAGE OF THE BATTERY.
