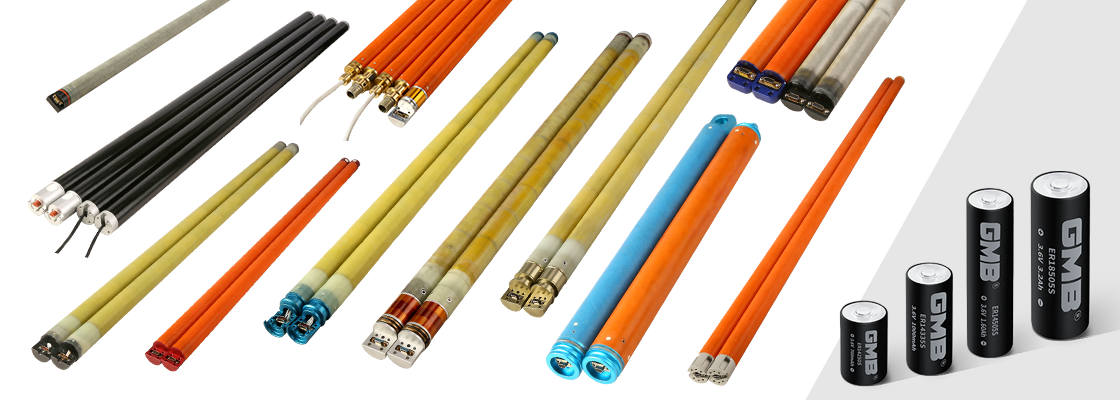

MWD/LWD Tools Battery Packs
Single Cell
| Type | Nominal Capacity | Nominal Voltage | Operating Current mA(MAX) | Standard Discharge Current | Cut off Voltage | Dimension(mm) | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
GB |
IEC |
mAH |
V |
Continuous |
Pulse |
Current mA |
V |
Dia |
H |
G |
|
1/2AA |
600 |
3.6 |
100 |
150 |
10 |
2.0 |
14.5 |
25.2 |
10 |
|
|
2/3AA |
900 |
3.6 |
100 |
150 |
50 |
2.0 |
14.5 |
33.2 |
14 |
|
|
AA |
1600 |
3.6 |
120 |
250 |
20 |
2.0 |
14.5 |
50.5 |
20 |
|
|
1/2AA |
3200 |
3.6 |
220 |
300 |
100 |
2.0 |
18.5
|
50.5 |
32 |
|
|
C |
5500 |
3.6 |
500 |
1000 |
4 |
2.0 |
26.2 |
50.5 |
52 |
|
|
CC |
13000 |
3.6 |
800 |
1200 |
100 |
2.0 |
26.2 |
102.5 |
102 |
|
|
D |
13000 |
3.6 |
800 |
1200 |
10 |
2.0 |
34.5 |
61.5 |
100 |
|
|
DD |
28000 |
3.6 |
1800 |
2000 |
100 |
2.0 |
34.5 |
124.5 |
200 |
|
|
DD |
28000 |
3.6 |
1800 |
2000 |
100 |
2.0 |
32.5 |
127.0 |
208 |
|
Our batteries are suitable for the products of these companies
Battery Packs
| Brand | Type | Voltage (V) | Capacity (Ah) | Out Diameter / Length (mm) | Max. Pules Current (mA) | Working Temperature (℃) |
|---|---|---|---|---|---|---|
|
GMB |
||||||
|
36.5 |
14 |
38×900 |
1000 |
-40~150/180 |
||
|
29.0 |
29.0 |
37.5 ×1185 |
1500 |
-40~150/180 |
||
|
28.8-29.2 |
27.0 |
37.5 |
1200 |
-40~150/180 |
||
|
29.0 |
29.0 |
37.5×1150 |
1500 |
-40~150/180 |
||
|
36.5 |
29.0 |
37.0×1455.0 |
1500 |
-40~150/180 |
||
|
21.9 |
9.0 |
50.5 × 190.2 |
300 |
-40~150/180 |
||
|
29.0 |
29.5 |
37.5×1190.0 |
1500 |
-40~150/180 |
||
|
14.6 |
29.0 |
37×1805.0 |
1500 |
-40~150/180 |
||
|
21.0 |
14.0 |
38.0×495 |
1000 |
-40~150/180 |
||
|
29.0 |
14.0 |
30×1010 |
10000 |
-40~150/180 |
||
|
11.0 |
9.0 |
26.5×362 |
500 |
-40~150/180 |
